I had a list of books in a MariaDB table that I wanted to redo by date. There may be a way to export selected fields and sorted data from MariDB using PHPMyAdmin, but I don’t know the trick.

But it is possible, in some cases, to sort data by columns in BBEdit if the data cooperates. In this case it did.

(1, 'Fer-de-Lance', NULL, 1934, '553385453',
(2, 'The League of Frightened Men', NULL, 1935, '553385453',
(3, 'The Rubber Band', NULL, 1936, '553763091',
(9, 'The Silent Speaker', NULL, 1946, '553234978',
(10, 'Too Many Women', NULL, 1947, '553250663',
...
(34, 'Black Orchids', NULL, 1942, '0553257196',
(35, 'Not Quite Dead Enough', NULL, 1944, '0553261096',

All I need to do was figure out a grep pattern that would match just the date field.
The first thing I did was search for the field I wanted to sort by. It took some experimenting but the code used to find the field I was looking for is:

NULL, \d{4}

where \d means look for digits and {4} tells how many.

Putting that code into the “Sort using pattern” sort field results in lines sorted by date. Alternatively,

\d{4},

also works.

Then its a simple matter of stripping off the ID field and renumbering.

Back in 2014 I wrote a post about processing returned email and enough has changed that the advice is no longer relevant.

I use Apple’s email client to send and receive mail and this time around I created rules for dealing with the remove requests, auto replies, and bad addresses. I don’t get many remove requests so I handle them individually. Likewise, the automated replies usually are out of office or moved to a new location so they get manual treatment as well.

This time around I got 12,002 failures—although the actual number is much lower because servers will give 24, 48, and 72 hour notices as well when they can’t deliver the mail. Deleting the 7,747 warning messages yields 4,255. I used three rules to put the returned mail into a Failure mailbox.

Subject begins with Warning: message
Subject begins with Undeliverable
Subject begins with Mail delivery failed:

This caught most of them. I then selected all of the messages and printed them to a PDF file. Mail does not warn you that it will only print 300 pages so if you don’t have a lot of failures you can select groups of messages and make sure that there are fewer than 300 pages in the group. My computer is old so it also is slow to delete messages. So you need to be patient.

If you can get the messages into a PDF file you can open it in Preview, select all and then use the BBEdit feature Process Lines Containing to first extract lines with @ and then remove ones with your domain. From there it was just a matter of getting rid of things like retry timeout exceeded, Final-Recipient: rfc822;, and Status: 5.0.0 by doing a simple find and replace.

Getting rid of the last group took a bit of grepping since I wanted to get rid of everything before the “<” e.g.

To: "Alice Foxwood" <AliceFoxwood@yahoo.com>

but it’s just

*.<

If you have lots of failures, and I normally get a bunch of I haven’t sent out an email in a while, then you need a different method. First you need to find where Mail put the Failure folder. MacOS won’t let you into the Mail directory so you need to copy it to your Desktop and then use the terminal to find one of the failed messages.

cd /Users/jscarry/Desktop/Mail
grep -R 'AliceFoxwood@yahoo.com' .

In my case the message was in

cd ./V7/06676897-0872-4618-9225-222A5281A236/Failure.mbox/69AC0518-E9C8-4B54-ADD0-2A0B676267B4/Data/

Then I copied every line with an @ to a file:

grep -R "@" . > ~/Desktop/failure.txt

This method gives you all of the header info so you get lots more junk than in the first method. I spent maybe 20 minutes using BBEdit to get rid of things before and after the address. Multiple sorts and deleting duplicates helped. I also used the Process Lines Containing feature to find all the lines with @ and copy them to a new file since some of my edits resulted in lines without an email address.

There are lots of duplicates in the list since so I sorted the lines and then removed duplicates. That left me with 4255 bad addresses which I then imported to my bad address table. That’s more than the 4,116 failure emails because some of the failure messages had an internal email address e.g. AliceFoxwood@baylor0.mail.onmicrosoft.com.

I have a new product that I want to notify my customers of and since it has been a while since I last sent an email blast and I have moved to a new server, I wanted to make sure I was conforming to the latest best practices. And when they sign up I want to make sure that confirmation and billing emails get delivered.

Return Path
The first thing I noticed is that my Return-path and envelope-from were set to the server name rather than the domain of the user that I was sending the email from. There is a way to configure Exim4 to automatically use the domain of the user when sending email, but I couldn’t figure out how to do it. I found this article that explains how to change it. However, since all of the mail I send from that server comes from the same domain, I fixed the problem by changing the /etc/mailname file so that it has the sending domain rather than the server’s domain.

I also updated my SSL config with certbot to set up mail.wellgolly.com as part of the SSL configuration. You need to do this separately from the website using sudo certbot certonly --standalone -d mail.wellgolly.com. However, since I changed the sending domain from mail.wellgolly.com to wellgolly.com this didn’t matter in the end for my bulk email but since my confirmation and billing emails still send out from mail.wellgolly.com. (I’m working on figuring out why they do that—the code uses PHP and was written by my guys 25 years ago, so I haven’t quite figured it out yet.)

Then I added a text file to my DNS. This spf file is not supposed to have a HOSTNAME label. The validator couldn’t find the spf file when it had a label but finds it when I removed the label.
v=spf1 mx a ip4:173.255.194.220 ip6:2600:3c00::f03c:91ff:fe70:bc93 include:charter.net include:wellgolly.com include:mail.wellgolly.com -all

Note that you include all of the servers that you use to send mail. In my case I use an ISP to send mail from my computers and wellgolly.com for the bulk email. As I mentioned earlier, I still haven’t figured out why my order confirmation emails use mail.wellgolly.com so I put that in as well. If you send email from your phone, you’d include that server as well.

DKIM
I found these two links that were useful for setting up DKIM with Exim4. myleen and a concise explanation from Mike Pultz.

remote_smtp:
  debug_print = "T: remote_smtp for $local_part@$domain"
  driver = smtp
  dkim_domain = wellgolly.com
  dkim_selector = x
  dkim_private_key = /etc/exim4/dkim.private.key
  dkim_canon = relaxed

The forum post from myleen says that you can use dkim_domain = ${lc:${domain:$h_from:}} but I didn’t try it.

One thing that I forgot was that the my Exim configuration on my machine is not set up in separate files but is in one large config file, exim4.conf.template. To have the changes take effect you need to run sudo update-exim4.conf and then restart Exim.

Notice that the line dkim_selector = x. The x can be anything but when you add the DKIM key you need to use the same label. In my case, x._domainkey.

Generate the public and private keys as described in the article and add two TXT files

x._domainkey.example.com.   TXT v=DKIM1; t=y; k=rsa; p=<public key>
_domainkey.example.com. t=y; o=~;

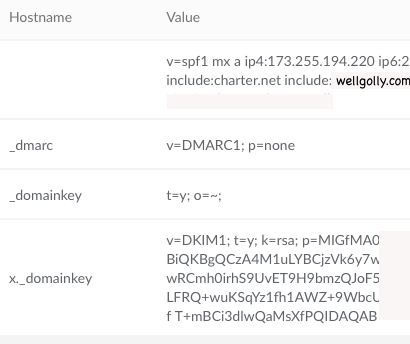

These are the TXT files I created so that the validator is happy.

Verification
You can send an email to check-auth@verifier.port25.com and it will respond with cryptic summary of results. This is good if you understand all the terms and how to fix things. I didn’t, so I used Mail Tester to check my mailings. It’s free for the first three but since I was fixing and testing based on their feedback I ponied up the 25€ ($27.50 with conversion fee of .15) and got 25 tests.

Make sure that Exim has permission to read the dkim.private.key file. This caused some validation errors. I don’t know who the user is that is sending the mail, so I couldn’t add them to a group. What I did instead was make everyone able to read the file using chmod o+rx.

Reverse DNS
I was getting this error:

Your IP address 173.255.194.220 is associated with the domain wellgolly.com.
Nevertheless your message appears to be sent from mail.wellgolly.com.
You may want to change the host name of your server to wellgolly.com.

So to fix this I edited /etc/hosts to remove the mail. prefix.

List Unsubscribe
This is recommended for newsletters so I added it. I can’t see it in the mail readers that I use, but it got rid of some negative scoring on the validator so I added it. I think Spark uses it to indicate that the message is a Newsletter.
Unsubscribe

List-Unsubscribe: <mailto: unsubrequests@exampledomain.com?subject=unsubscribe>, <http://www.exampledomain.com/unsubscribe.html>

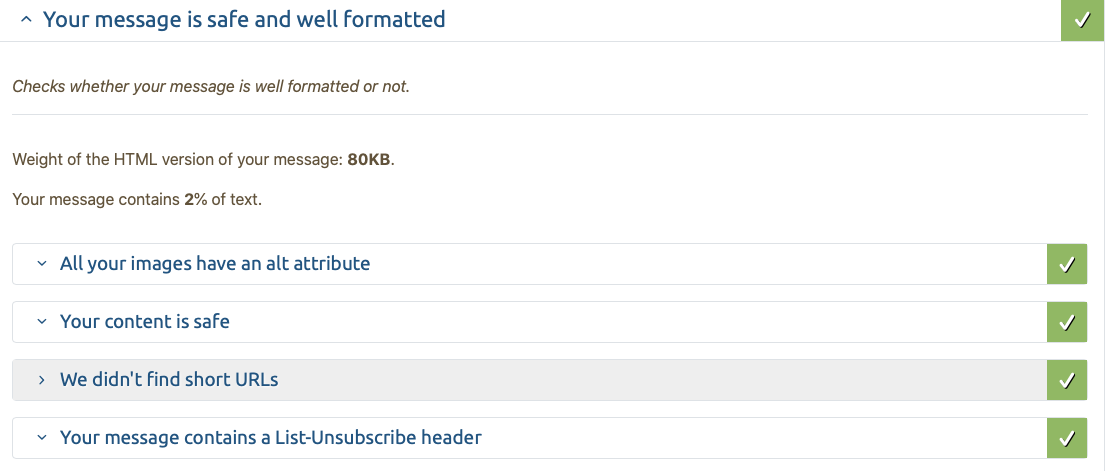

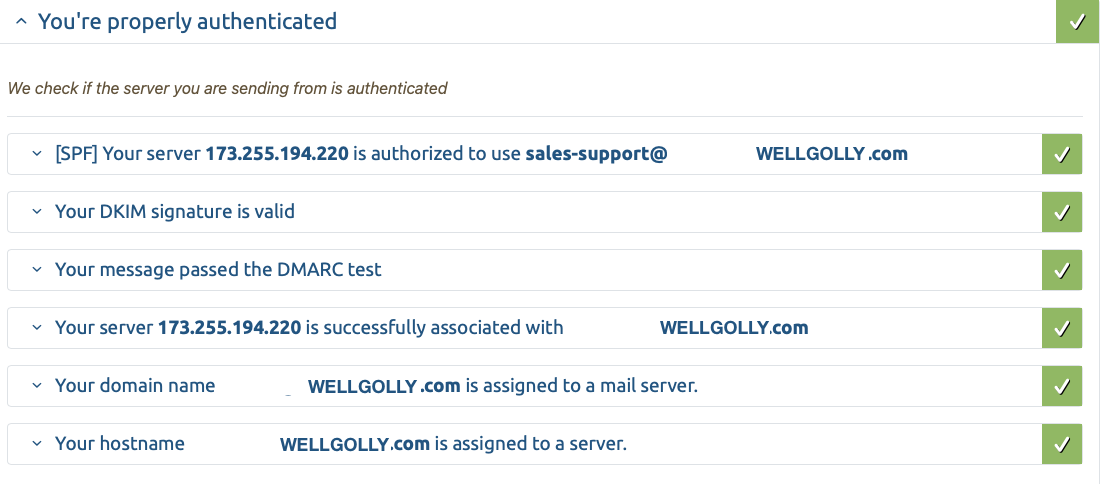

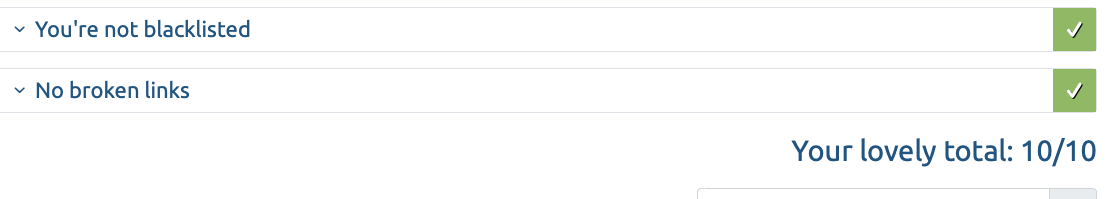

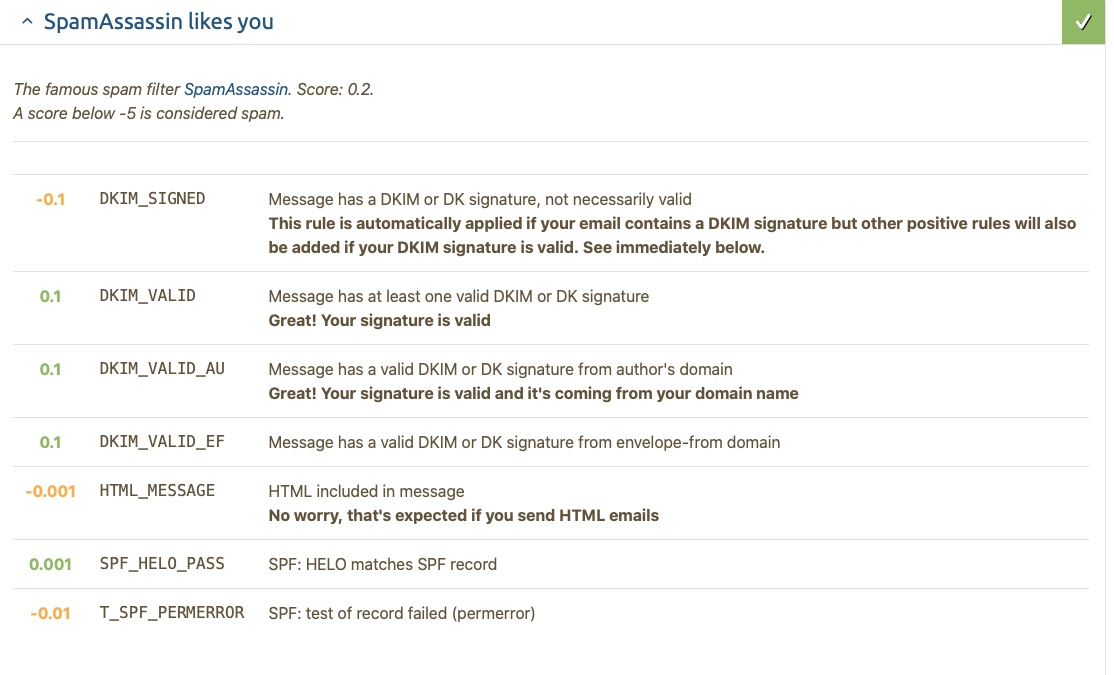

This is what the mail validator says now and I score 10/10. Unfortunately, that didn’t prevent Gmail from marking my email as spam, but at least it didn’t get rejected entirely.

I couldn’t track down what the T_SPF_PERMERROR means but it doesn’t seem to have any effect on my score.

One thing that paradoxically did have an effect on my score was a ratio of text to graphics that was too high. I added a paragraph of text and that issue was resolved.

The results from verifier.port25.com are encouraging as well. Unlike Mail Tester, they don’t tell you how to fix the problems or even really what the results mean. They are free however, and now that I know a bit about what everything means, I’ll probably use them for checking things when I make changes.

==========================================================
Summary of Results
==========================================================
SPF check:          pass
"iprev" check:      pass
DKIM check:         pass
SpamAssassin check: ham

==========================================================
Details:
==========================================================

HELO hostname:  wellgolly.com
Source IP:      2600:3c00::f03c:91ff:fe70:bc93
mail-from:      sales-support@wellgolly.com

----------------------------------------------------------
SPF check details:
----------------------------------------------------------
Result:         pass
ID(s) verified: smtp.mailfrom=sales-support@wellgolly.com

DNS record(s):
   wellgolly.com. 300 IN TXT "v=spf1 mx a ip4:173.255.194.220 ip6:2600:3c00::f03c:91ff:fe70:bc93 include:charter.net include:wellgolly.com include:mail.wellgolly.com-all"
   wellgolly.com. 300 IN MX 1 mail.wellgolly.com.
   mail.wellgolly.com. 300 IN AAAA 2600:3c00::f03c:91ff:fe70:bc93

----------------------------------------------------------
"iprev" check details:
----------------------------------------------------------
Result:         pass (matches wellgolly.com)
ID(s) verified: policy.iprev="2600:3c00::f03c:91ff:fe70:bc93"

DNS record(s):
   3.9.c.b.0.7.e.f.f.f.1.9.c.3.0.f.0.0.0.0.0.0.0.0.0.0.c.3.0.0.6.2.ip6.arpa. 300 IN PTR wellgolly.com.
   wellgolly.com. 300 IN AAAA 2600:3c00::f03c:91ff:fe70:bc93

----------------------------------------------------------
DKIM check details:
----------------------------------------------------------
Result:         pass (matches From: sales-support@wellgolly.com)
ID(s) verified: header.d=wellgolly.com

The simple verifier has some options that you can find at their website. I also used it to check what’s happening with my other mail by sending a command-line email.

/usr/sbin/exim -v check-auth@verifier.port25.com
From: sales-support@wellgolly.com
To: check-auth@verifier.port25.com
Subject: DKIM Test
test message

In case you’ve forgotten, when you send a multi-line command you terminate it with ctl-d.

The Result
I sent out my mass mailing to customers today and, unlike previous years, I did not get any bounces for missing SPF record, line length exceeded, or spam filters. So the couple of days figuring this out was worth it.

I did get a lot of bounces since many people do not keep the same address forever like I do. Many of them are from schools and companies so it makes sense that the email address is deactivated after a while when employees leave. Lots of bounces for mailbox full so most of them are also probably old email addresses.

I dumped all of the undeliverable mail into a file so I can make a list of bad addresses and the first one in the list also has a bunch of diagnostic stuff in it. An interesting bit was this section:

X-Barracuda-Spam-Score: 0.62
X-Barracuda-Spam-Status: No, SCORE=0.62 using per-user scores of TAG_LEVEL=1000.0 QUARANTINE_LEVEL=1000.0 KILL_LEVEL=5.0 tests=ANY_BOUNCE_MESSAGE, BOUNCE_MESSAGE, BSF_SC0_SA074b, BSF_SC0_SA590, EMPTY_ENV_FROM, NO_REAL_NAME, SH_BIG5_05413_BODY_104
X-Barracuda-Spam-Report: Code version 3.2, rules version 3.2.3.83021
  Rule breakdown below
   pts rule name              description
  ---- ---------------------- --------------------------------------------------
  0.00 EMPTY_ENV_FROM         Empty Envelope From Address
  0.00 NO_REAL_NAME           From: does not include a real name
  0.21 SH_BIG5_05413_BODY_104 BODY: Body: contain "UNSUBSCRIBE"
  0.20 BSF_SC0_SA590          Custom Rule SA590
  0.20 BSF_SC0_SA074b         Custom Rule SA074b
  0.00 BOUNCE_MESSAGE         MTA bounce message
  0.00 ANY_BOUNCE_MESSAGE     Message is some kind of bounce message

According to the Barracuda website my score if .62 is great since The score ranges from 0 (definitely not spam) to 10 or higher (definitely spam). That program is fairly popular and there were 52 other messages that I got back 35 had a score of 0, 6 had a score of 1.09, two had a score of 2.02 and the rest were between .21 and .91. I’m not sure I can do anything about the high scores since the report doesn’t make a lot of sense to me. My embedded URLs use HTTPS and are really short—just the domain name followed by exercises/overview.html. Most of the points come from their custom rules so there’s not much I can do about that.

  Rule breakdown below
   pts rule name              description
  ---- ---------------------- --------------------------------------------------
  0.00 NORMAL_HTTP_TO_IP      Uses a dotted-decimal IP address in URL
  0.00 NO_REAL_NAME           From: does not include a real name
  0.00 MIME_BOUND_MANY_HEX    Spam tool pattern in MIME boundary
  0.00 EMPTY_ENV_FROM         Empty Envelope From Address
  0.32 URI_HEX                URI: URI hostname has long hexadecimal sequence
  0.00 IP_LINK_PLUS           URI: Dotted-decimal IP address followed by CGI
  0.50 WEIRD_PORT             URI: Uses non-standard port number for HTTP
  0.00 HTML_MESSAGE           BODY: HTML included in message
  0.20 BSF_SC0_SA590          Custom Rule SA590
  0.50 BSF_RULE7568M          Custom Rule 7568M
  0.50 BSF_RULE_7582B         Custom Rule 7582B
  0.00 BOUNCE_MESSAGE         MTA bounce message
  0.00 ANY_BOUNCE_MESSAGE     Message is some kind of bounce message>/code>


There were only five messages checked with SpamAssassin and this was the result:
<code>
X-Spam-Status: No, score=0.0 required=9.9 tests=HTML_MESSAGE
    autolearn=disabled version=3.3.2
X-Spam-Checker-Version: SpamAssassin 3.3.2 (2011-06-06)

One message had this report which makes no sense to me, but maybe it will be useful to someone else.

X-ENA-MailScanner-SpamCheck: not spam, SpamAssassin (not cached, score=3.554,
  required 4, BAYES_00 -2.20, DATE_IN_PAST_06_12 1.54,
  DKIM_SIGNED 0.10, DKIM_VALID -0.10, DKIM_VALID_AU -0.10,
  DKIM_VALID_EF -0.10, DMARC_PASS -0.00, ENA_BAD_OPTOUT 2.20,
  ENA_BAD_OPTOUT5 0.00, ENA_BAYES_OFFSET 2.20, HTML_MESSAGE 0.00,
        ENA_BAD_OPTOUT5 0.00, ENA_BAYES_OFFSET 2.20, HTML_MESSAGE 0.00,
  SPF_HELO_PASS -0.20, SPF_PERMERROR 0.20, T_SPF_PERMERROR 0.01)

There were 36 of these:

X-Forefront-Antispam-Report:
  CIP:134.197.10.234;CTRY:US;LANG:en;SCL:1;SRV:;IPV:NLI;SFV:NSPM;H:UC-Exchange1.unr.edu;PTR:InfoDomainNonexistent;CAT:NONE;SFTY:;SFS:(50650200002)(4636009)(136003)(396003)(346002)(376002)(39860400002)(1930700014)(46966005)(30864003)(78352004)(42882007)(336012)(26005)(7696005)(498600001)(45080400002)(2876002)(31686004)(8936002)(8676002)(2906002)(83380400001)(6916009)(55016002)(786003)(316002)(31696002)(82310400002)(70586007)(70206006)(66576008)(82740400003)(956004)(47076004)(81166007)(5660300002)(356005)(53652003)(559001)(579004)(299355004);DIR:OUT;SFP:1501;

You can try to decipher it at the Microsoft website but I think the good part for me is CAT:NONE; since all of the listed categories are bad and NONE appears to be the default that indicates that the message is not spam.

One of the things that you need to do to keep off the spam lists is remove old email addresses. I don’t plan on sending bulk emails to my customers very often but if I do I want to stay off the spammer list. So I created a list of bad addresses. The first thing I did was to search for X-Failed-Recipients:. This provided me with a clean list of 86% of the bounces.

I then looked for To: ". This gave me more lines than bounced messages but by filtering out every line that didn’t end in >, sorting the remainder and removing duplicate lines, I got it down to one line per address. 94% of the bounces.

Combining the two gives me slightly fewer addresses than using the To: " method alone. This probably happened because I had people in the database multiple times with slightly different name fields.

There were a handful of Unknown address error messages that didn’t fit any pattern for automatic filtering. They were only 1% of the total so I cleaned them up by hand. Nothing else popped out to me so I think I’ll leave it at that.

I started using git with my first Apple app because it was built into Xcode and one of the first lessons in the Stanford Xcode class recommended that we use it. I never used the branching features, since I’m the only one working on the code, but I frequently made use of the lookback features so I could roll back code that didn’t work or grab code that I had discarded but found out that I needed. So I basically used it for journaling.

Most of the websites that I work on don’t have lots of active users so when I want to make an update or something breaks, I just work on a copy or on the live files. However, I recently started a website that has active users and rather than only working in the site at night or making sure no one was using it before potentially breaking it, I decided to make a beta subdomain as I explained in some recent PHP-related posts. As long as I don’t mess with the database I can break whatever I want and it doesn’t affect users.

At first I thought that I’d use rsync to sync the two but git seems to work fine. The only problem is if I fix a small bug on the live site then I have trouble getting the new stuff to synchronize. I suppose I could figure out how to resolve differences, but an easier way is just to force the live site to match the beta site. Since they are on the same server, it doesn’t take any time to synchronize.

 git fetch --all
 git reset --hard origin/master

The normal way to sync when I haven’t made any changes is just:

 git pull origin master

I also keep a copy as backup on my laptop with the same code.

  // Do this once to establish the origin
  git remote add origin "ssh://g@wellgolly.com/www/beta/exercises/.git"
  // Do this when you want to synchronize
  git pull origin master

I have been helping some people set up websites recently and thought it would be good to explain the basic elements to putting up a website.

Domain registration.
This is done by GoDaddy, Namecheap, etc. It is where you pick your domain name. You can have multiple domain names for your site. That’s especially useful if your company has a long name, but you want an easier to remember website name. So if your name, is Old Towne Bike Shop and Brew, you might want to also register BikeAndBrew, Note that domain names are not case sensitive, so you can use caps like WellGolly.com to make them more readable. Be careful when you pick you name so that there isn’t something bad in the middle. My brother-in-law got a license plate for his Wild Horse Ranch but could only use 8 letters. WILDHORS just doesn’t cut it. Likewise, Dr Goode, Physical Therapist shouldn’t pick, GoodeTheRapist.com.

DNS – Domain Name Service
This is where you point the domain name to a specific IP address. Every device on the internet that communicates to the outside world has an IP address. The modem in your house has an IP address that is assigned by your Internet Service Provider (ISP). When you visit a website, you send along your IP address. When the website responds, it sends information to your IP address and your router then sends it to the device in your house or office that requested the information. Same thing happens with your phone when you are out and about. The IP address can change but you don’t want your websites address to change.

So when you buy a domain you need to point it to a fixed IP address so the world knows how to find you. You get that from whoever provides your server. Then you tell the DNS where to find the IP associated with your domains. My server 173.255.194.220. You can reach my server at this address and it sends you to the default site. There are many websites on my server and the webserver that I use (Apache2) sees that WellGolly.com is being asked for and redirects traffic to a folder on the hard drive.

You can use your registrar for DNS but I use the server provider—Linode.

Server
You can have GoDaddy host your website if you want. Lots of people I work with do that. Or you can have your own PC. I used to do that but now it is much cheaper to use the cloud. I share a machine with others but to me it looks like I have the machine all to myself. Some of my domains are at Linode and some are at Digital Ocean. Large companies use Amazon AWS, Google, or Microsoft. There are many many alternatives for all budgets and loads.

SSL Certificate
The lock button on the website means that traffic is encrypted from my server to your computer. It assures that the traffic is not messed with and no one knows what you were reading. All they know is that you visited a site. You used to have to pay a lot for SSL certificates but now you can get them from Cloudflare or Certbot for free. I use Certbot. This doesn’t verify that you are a legitimate company, just that the traffic is encrypted. Banks and big retailers use other services that also verify the identity of the company.

The actual website.
I use a combination of code and WordPress for my sites. The nice thing about WordPress is that I can set up people to use it and they can’t do anything else on the server.

You can get all five of these services as a bundle from lots of companies—GoDaddy, Squarespace, Wix, WordPress, etc.

WordPress site health
I am running the server on Ubuntu 18.04.4 LTS which means that I can update it regularly until 2023 and nothing will break. There is a new Long Term Service version that just became available and I am testing it on one of my servers. It updates PHP but I don’t need any new features so I haven’t updated it on this server yet.

On one of the sites that I host the user was concerned that the WordPress Health Check flagged imagick PHP module as a recommended performance improvement. Apparently one of the plug-ins that they are using for uploading images works better with it. I installed it from the command line using sudo apt-get install php-imagick.

It also noted that there were plug-ins that weren’t updated. I don’t have automatic updates enabled (I actually don’t know how to do that.) but you can update the plugins by looking for the red number next to the Plugins tab.

They also got a few Critical Issues. The REST API encountered and error and Could not complete loopback request. These errors are due to either a problem with a plug-in or conflict between plug-ins. If the site works, just ignore them. Otherwise, disable plug-ins until the error goes away and then figure out how to fix it.

Site Metrics
If you want to use Google to track the site, there are plug-ins that let you do it or you can copy the code and I can out it on the site. One benefit of using Google for tracking is that you know they have indexed your page.

You can Google how to do it, this page seems reasonable.

Matomo also has a plug-in that avoids having Google spy on all of your traffic.
